ATN X-Sight 5 vs Sightmark Wraith 4K Mini

What both of these are, and what neither is

Both are digital night vision day/night riflescopes: a low-light camera sensor behind glass, a screen in the eyepiece, and an infrared illuminator to light up what the sensor cannot see unaided. They work in daylight too, which thermal does not do well, and they show you an image that looks like the world rather than a heat map.

Neither detects heat. A hog standing in cedar is invisible to both of these and obvious to a thermal, and neither sees further than its illuminator throws. If your hogs come to a feeder and you want to watch the feeder and shoot what arrives, digital night vision is the cheap, sensible route. If you need to find animals in cover across a pasture, you want thermal. We work that choice through on thermal vs night vision for hog hunting.

Battery: the decisive gap, and it is not close

This is the comparison. ATN publishes 18+ hours for the X-Sight 5. Sightmark publishes 3.6 hours recording and 4.4 hours in preview for the Wraith 4K Mini, on two CR123A cells — primaries you buy, use and throw away.

For a hog hunter that is the whole argument. A sit from last light to 2 a.m. is roughly six hours. The X-Sight covers two of those nights on a charge; the Wraith does not cover one without a cell change or an external battery on the rail. Sightmark does provide USB-C external power, and in practice that is how people run it — which means a cable, a pack and something to strap it to.

Specs side by side

The illuminator question, which both sides fudge slightly

Both scopes come with an 850 nm infrared illuminator. Both illuminators are separate units that bolt on rather than being built into the body — ATN includes its IR850 in the box, and Sightmark includes an LED unit it rates at about 1,060 mW on high. That matters for two reasons: it is another thing on the rail to snag and another thing to switch on, and the beam is not coaxial with the sensor, so at close range you can get an off-centre pool of light.

Sightmark is the only one of the two to publish a night detection figure: 300 yards with the included illuminator. ATN publishes no equivalent number for the X-Sight 5, which is worth knowing and is not a mark against it — 850 nm illuminators are all broadly similar and both will outrun their own glass before they outrun their IR. If you want more reach than either, the answer is a bigger illuminator, which we rank on best IR illuminators for night vision.

One practical note on wavelength: 850 nm produces a faint red glow visible to an animal looking straight at it. 940 nm is genuinely invisible and costs you reach. Neither of these ships 940 nm.

Ballistics, recording and reticles

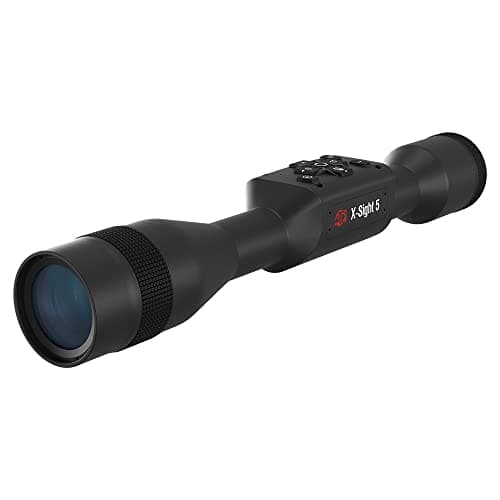

The X-Sight 5 is the more featured scope. ATN publishes a built-in ballistic calculator, a reticle editor, a Smart Mil Dot reticle, 4K recording, dual-stream (stream in HD while recording) and Recoil Activated Video, which starts recording on the shot so you get the hit without remembering to press anything.

The Wraith 4K Mini answers with reticles rather than software: Sightmark publishes 14 reticle options in nine colours, four of them first focal plane. First-focal-plane reticles hold their subtension as you change magnification, which is the right behaviour if you are using the reticle to hold over at different zoom levels. The Wraith records 1080p or 4K with audio to a microSD card up to 256 GB — removable storage, which is easier to deal with than internal memory.

There is no ballistic calculator on the Wraith 4K Mini. If you want a calculator fed by a measured distance rather than an estimate, that is the X-Sight 5 LRF below, or a thermal with the same feature — we rank those on best thermal scopes with a ballistic calculator.

Ruggedness and cold, where Sightmark is more forthcoming

Sightmark publishes the harder numbers: IPX6 (water resistant, not submersible), a .308 Win recoil rating, 21.6 oz with batteries, and an operating range that starts at 32°F. That last one is a real limitation and the reason this scope is not our pick for a January sit in the Panhandle — a scope specified from freezing upward is a scope you are using out of specification on a cold night.

ATN, on the X-Sight 5 page, does not publish weight, an IP rating or a recoil rating in text at all. That is a gap, and we hold it against the scope in our rubric rather than assuming the figures are good. ATN's limited warranty runs two years on this line, same as Sightmark's published terms for the Mini family.

The X-Sight 5 LRF, briefly

ATN also sells the X-Sight 5 with a laser rangefinder, which feeds distance straight into the ballistic calculator. Same 4K recording, same recoil-activated video, same 18+ hour rating, same IR850 in the box, same two-year warranty; it is sold in 3-15x and 5-25x configurations. If you shoot at varying distances across open ground, that is the version worth the step up, because the calculator stops being a guess machine.

If every shot is at a known feeder distance, skip it and put the money into a bigger illuminator or a second optic for scanning.

Which to buy

Our rubric lands the same way: the X-Sight 5 scores 7.6/10 against the Wraith 4K Mini's 6.5/10, with battery doing most of the damage. Both sit in the $500-to-$1,000 tier, where we rank the whole category on best night vision scopes for hog hunting.

Mistakes buyers make between these two

• Buying on "4K". Both say 4K. Neither 4K figure tells you how the scope behaves on a hog at 150 yards in starlight.
• Ignoring the CR123A bill. Two primaries per 3.6 hours of recording adds up over a season.
• Assuming the included illuminator is enough. It is enough at feeder distance. Past that, budget for a real illuminator.
• Expecting either to see through brush. That is thermal. These need a line of sight and light.
• Overlooking the Wraith's 32°F floor. If you hunt cold nights, this is the specification that matters most and the one nobody reads.
• Paying for the LRF when every shot is at the same feeder.
